ขนาด

ความหนา : 0.5 mm./0.6 mm./0.7 mm./ 0.8 mm./ 1.0 mm./ 1.2 mm.
ความกว้าง : 914 mm and 1219 mm.
น้ำหนัก : 500 – 1000 กิโลกรัม

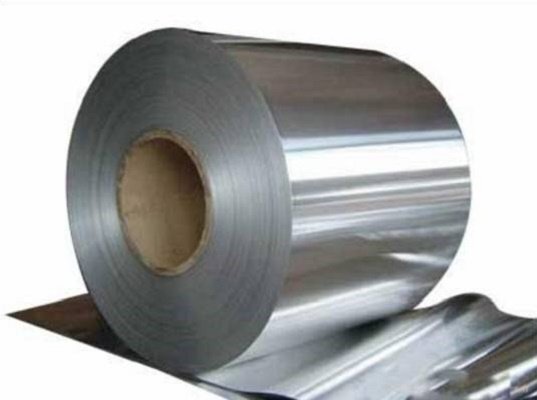

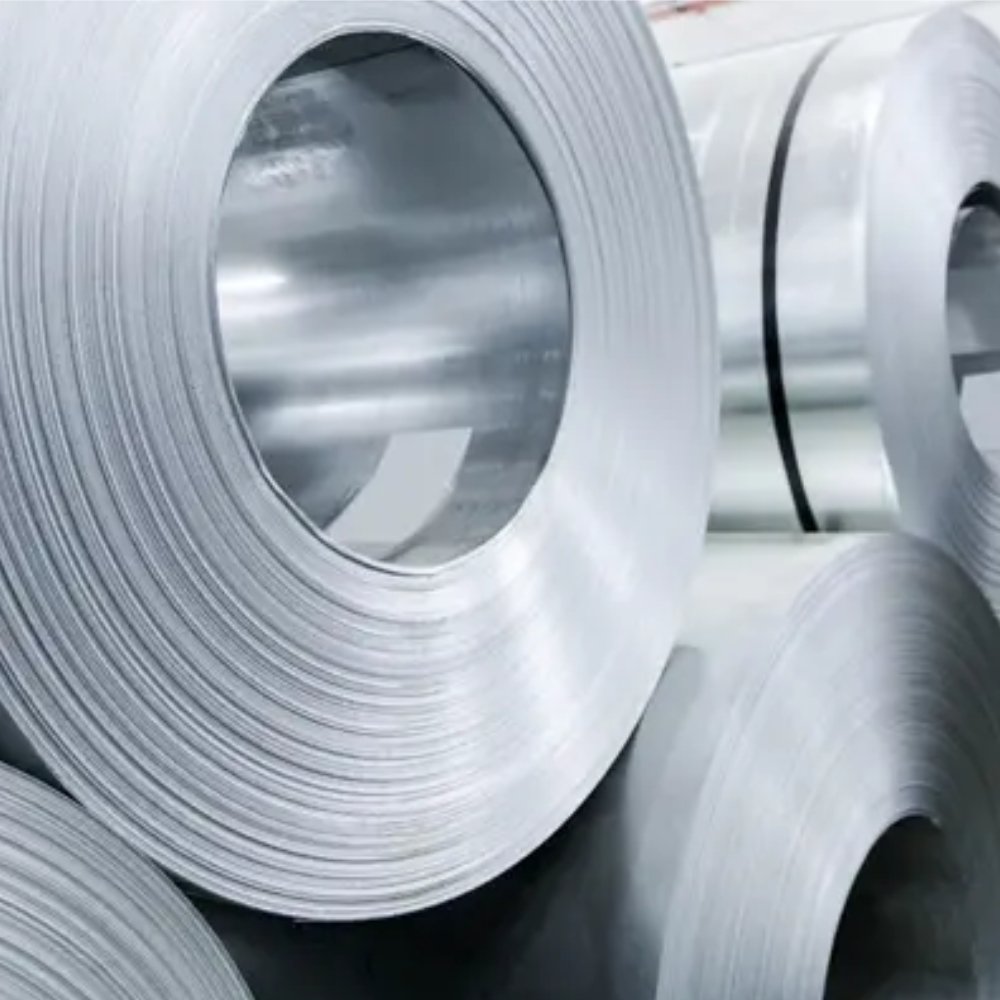

ALUMINUM ALLOY 3003

98.2 Al | 0.20 Cu | 1.20 Mn | 0.7 Fe | 0.10 Zn | 0.6 Si | “S” Weight Factor – 3.73

Aluminium roll jacketing is manufactured from wrought aluminium alloy 3003  meeting ASTM B209 with an H-14 temper.The properties of this aluminium alloy provides the required strength to resist in-service abuse,and can be easily fabricated and installed.

Summary : 3000 serise – Manganese is the major alloying element of alloys in this group, which are generally non-heat-treatable. Because only a limited percentage of manganese, up to about 1.5 percent, can be effectively added to the aluminum, it is used as a major element in only a few instances. One of these, however is the popular 3003, which is widely used as a general purpose alloy for moderate strength applications requiring good workability.
